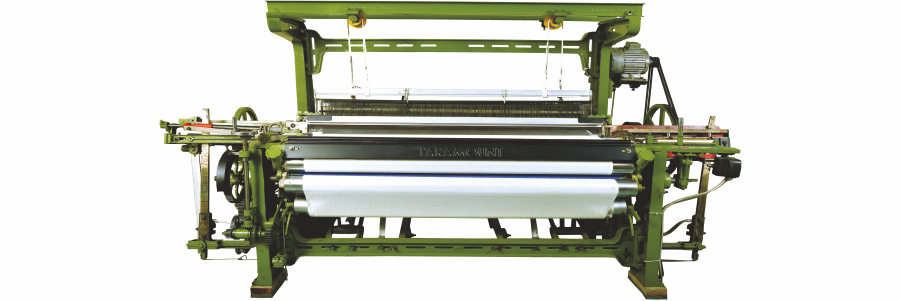

Super Excel Plus Shuttle Loom

Yarn Specifications in detail:

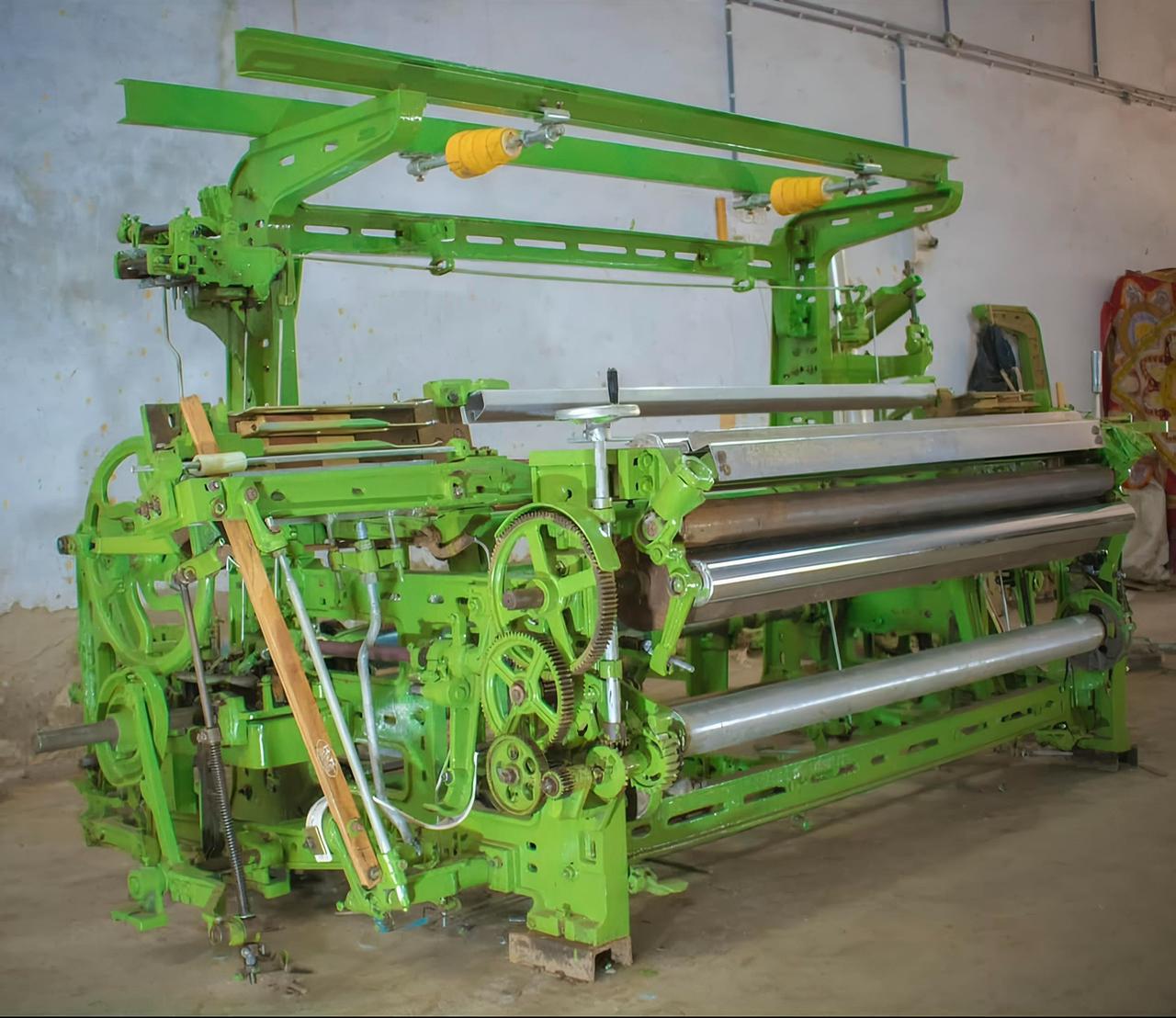

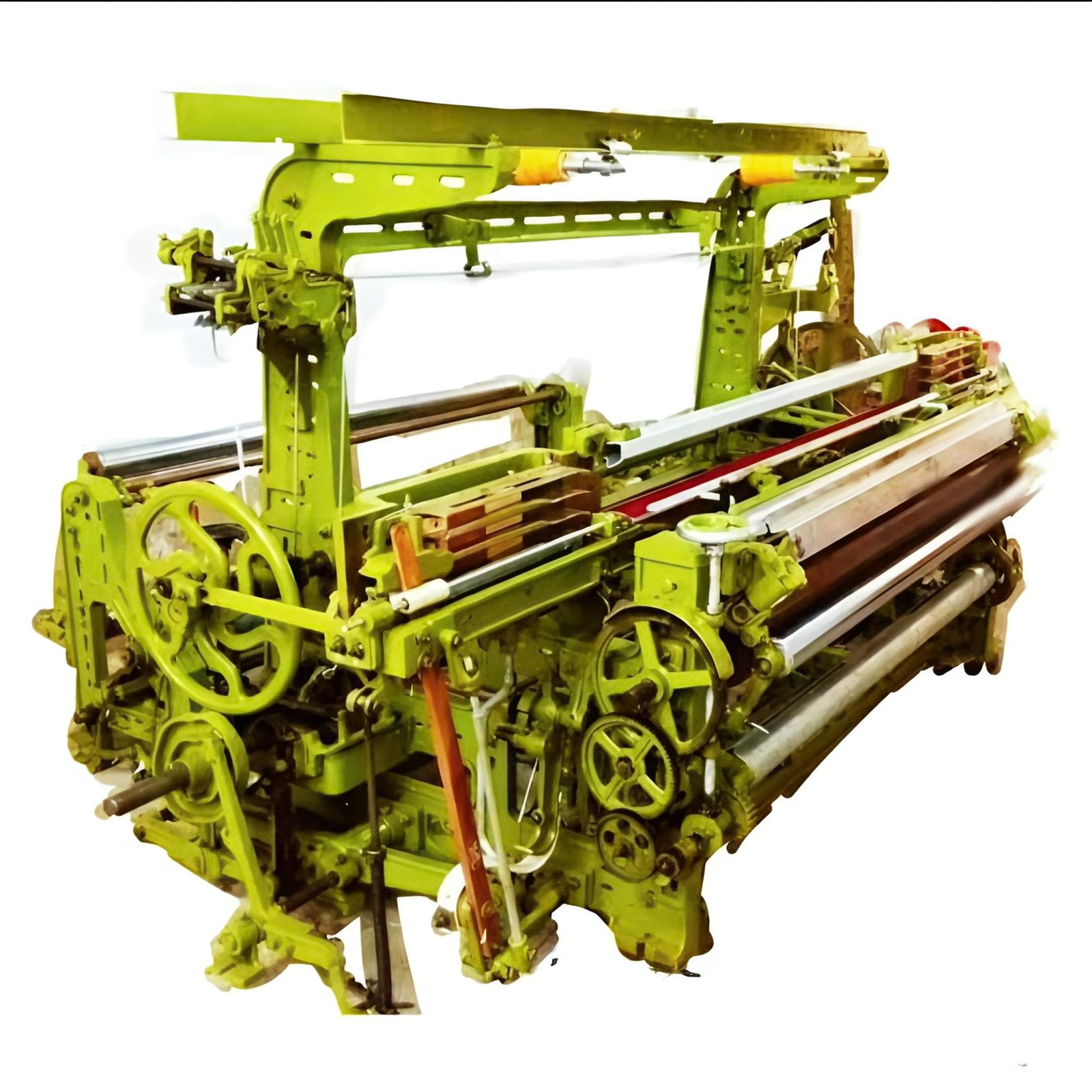

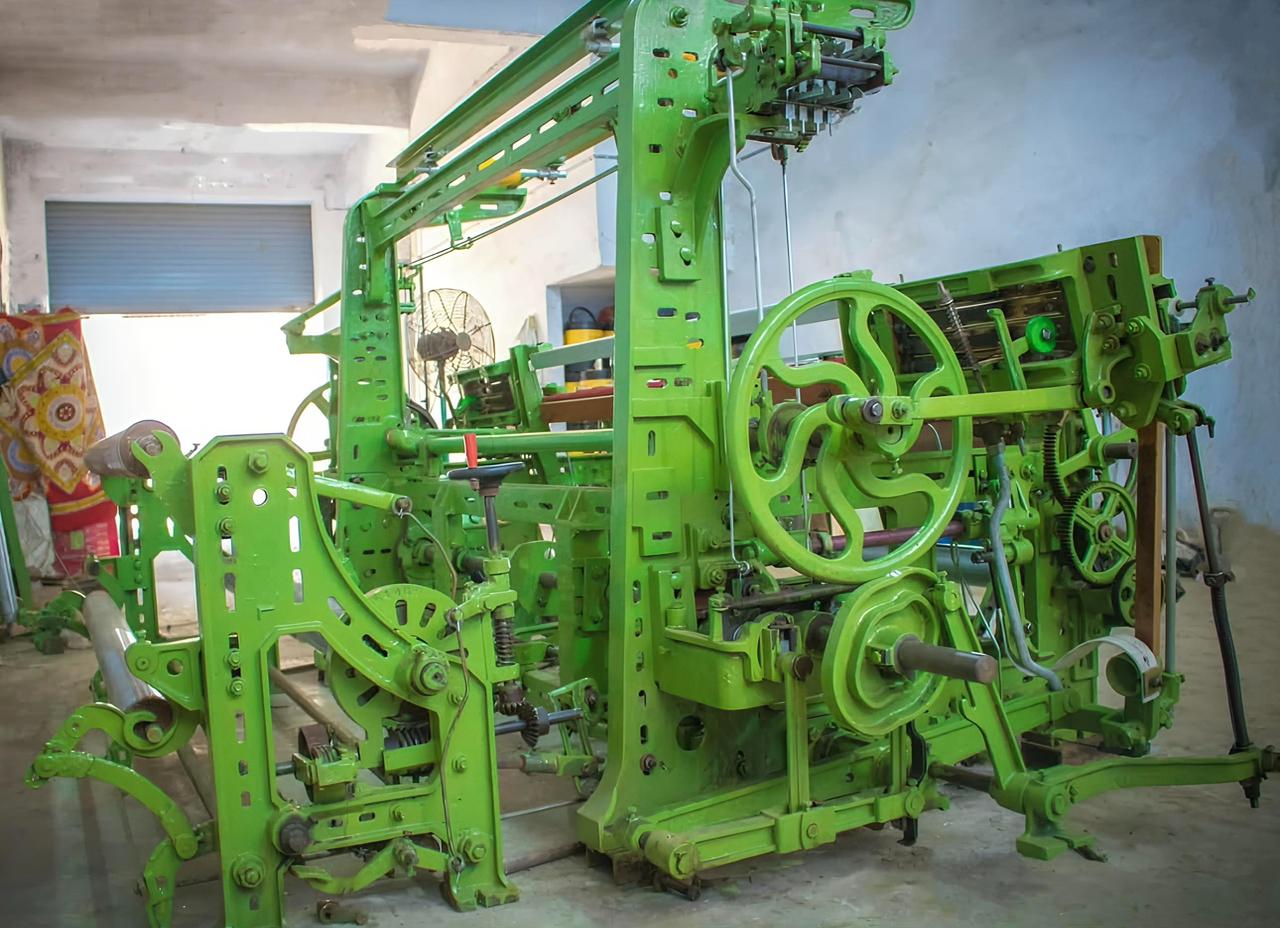

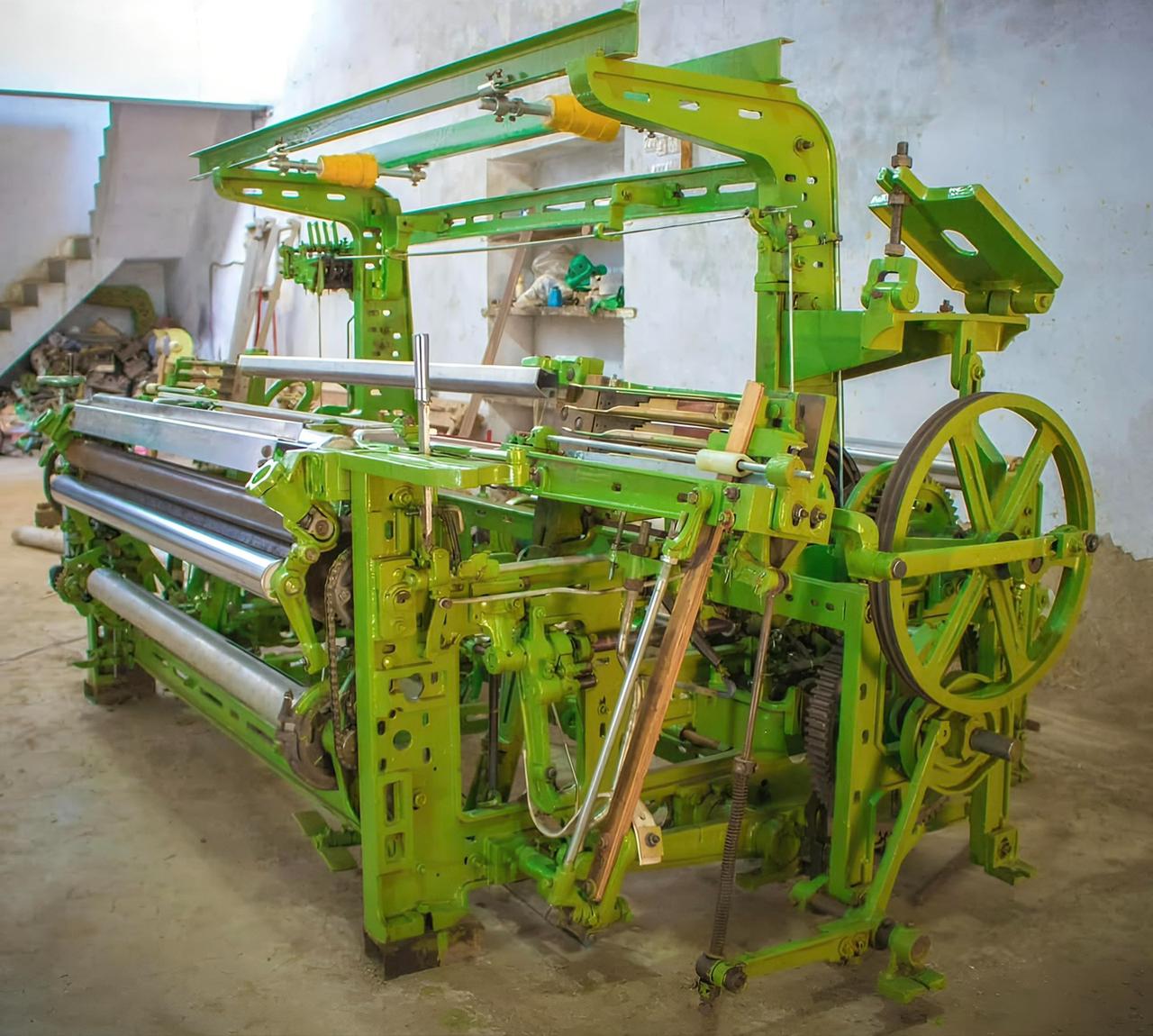

Bookmyloom’s ventured into the Textile Engineering field by producing powerful Shuttle looms in the year 2013. Since then there is no looking back. The company has upgraded its shuttle loom weaving machines with the advancements in the market. Today Bookmyloom’s enjoys the respected position as the power loom manufacturer in Gujarat. Bookmyloom’s Super Excel Plus is High Speed 5 Roll Shuttle Loom. It is designed with perfect workmanship using the latest machining techniques to give it the best performance of the entire loom. High-grade castings are used to give longer life to the components. For safe production, the Super Excel shuttle loom is divided into left and right-hand carts.

Financial & Technical benefits of Super Excel Plus looms for Weavers:

• Driving Motion for maximum efficiency

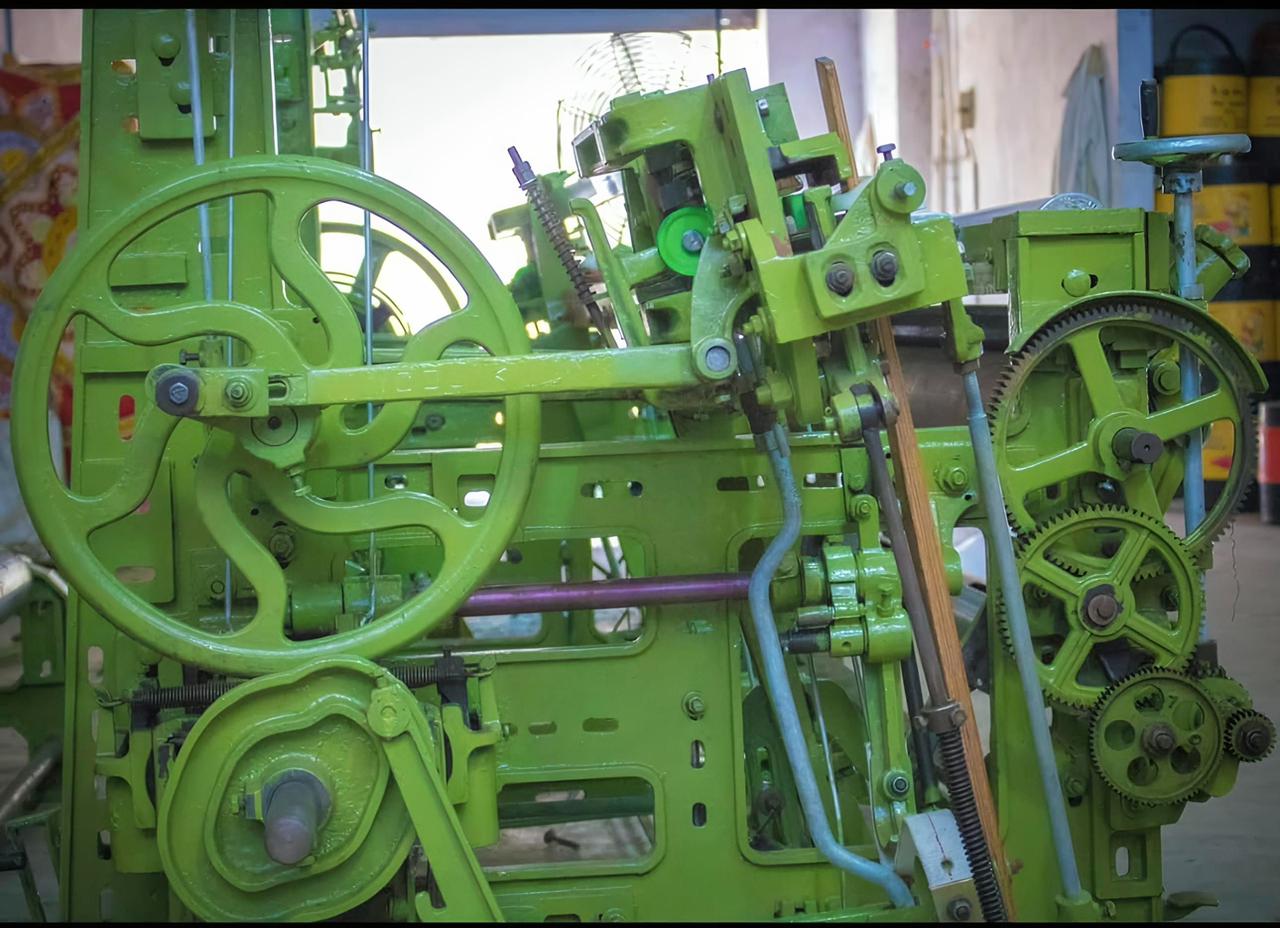

  Super Excel loom Driving mechanism is designed and developed to achieve maximum efficiency by smooth and economical transmission and production by high speed running. The shuttle loom is driven by electric motor 0.5HP to 1.0 HP 960 RPM by 2 V belts. Super Excel looms can run on Solar Panel and DC motor also. Super Excel Looms can run at 110 to 140 RPM depending on reed space and fabric quality.

• Smooth Picking
  Unique center picking is adopted for smooth and uniform action for high speed operation. Big cams made by S.G. material can give very smooth picking without breaking of cam and ensure longer life for the shuttles, pickers and picking sticks.

• Take-Up motion

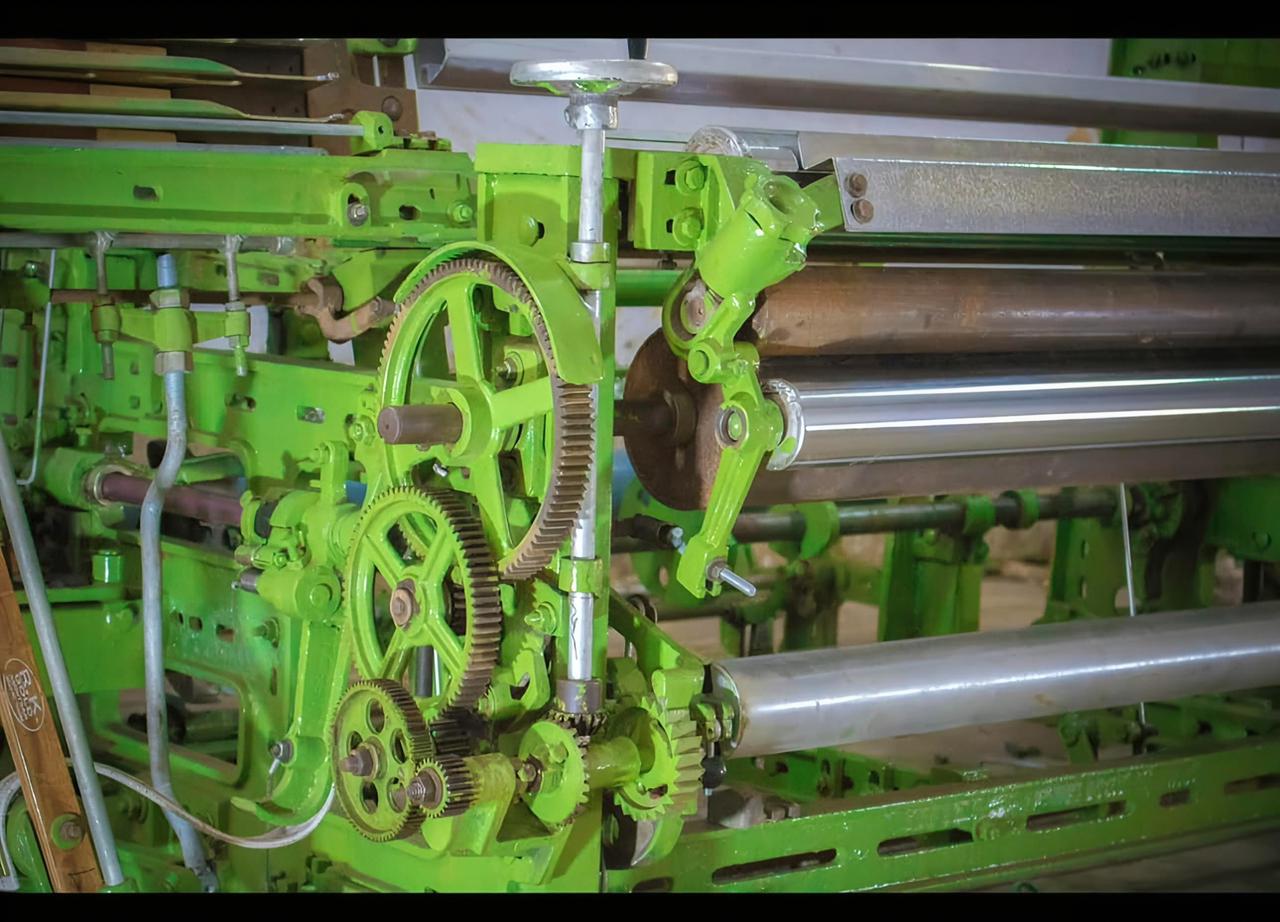

  The Pickle’s indirect and intermittent (7 wheel motion with 5 roll motion) take up system is adopted in loom. The change gear is such that each tooth corresponds to one pick. The breast roll, guide roll and press roll are of steel pipes with high chrome plated and heavy weight with 3.5” big dia, Emery roll is also heavy weight and 8” dia steel pipe suitable for heavy fabrics as well as light fabrics and cloth roll are made of steel pipe with 3.5” big dia heavy weight zinc plated. Super Excel 5 Rolls gives the cloth proper uniform tension.

• Let- Off motion for constant speed
  The letting of system is of frame type which maintains uniformity of warp tension and constant speed by super sensitive and accurate tension control. It is positive type with automatic feeler link mechanism with self lubricating bushes in the tension lever brackets. Guide roll and tension roll are made of Steel pipes with high chrome plated heavy weight, 3.5” dia. Unrolling head wheel is provided at both front and rear side of the loom. The warp tension for different weights of fabrics can be made by adjusting the position of guide roller without changing weight on the levers. The large package operation is Practicable on the let-off system with the beam flanges up to 20”dia.

Financial & Technical benefits of Super Excel Plus Shuttle Looms:

• Beating Up Motion for longer life
  An improved fast reed system of beating is employed in this model for stable flight of shuttle and correct beating of weft. Beating Up Sly is made from old teak wood, aluminum sly cap with steel cover and with (flexible shuttle fly guard optional) is supplied for longer life and for weaving heavy quality of fabrics.

• Shedding motion
  Shedding in is adopted with double treadle bowls with tappet to achieve ideal shedding. The Super Excel loom can weave plain fabric with tappet motion. It can also accommodate dobby up to 16, 24 or 40 for jacks or 400, 600, 800, 900, 1200,1400,2600 hooks jacquards mechanical or electronic can be used.

• Safety
  Like all our products, our Super Excel Plus Shuttle Looms are strictly tested before being shipped to our customers.

• Durability
  Designed with superior quality materials, Super Excel Plus Shuttle loom boasts of having more than 50 years of life.

• Best service
  customer satisfaction is the topmost priority of Paramount Looms Pvt. Ltd. We are eager to solve any problems and respond to any queries related to your shuttle loom machine.

• Customization
  Fabric meter counter can be equipped to get desired fabric cut length.

Bookmyloom’s is known for the world class shuttle loom weaving machines we make. The company has created a bench mark in the textile industrial segment by offering a wide range of Rapier & Shuttle looms suitable to the customized looms.
